Jamb Sockets

Manufacturer: SRS Hardware

Use: Jamb Sockets are set into the side jambs and act as a finished “receiver” for Springbolts.

Packaged  10 or 100 pieces

Available finishes: Unlacquered Brass and Oil Rubbed Bronze

From $1.68 each

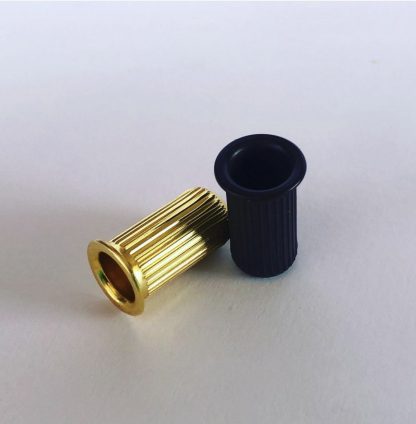

These sockets receive the end of our Spring Bolts and give window frames a finished appearance.

Jamb sockets are made of solid brass. To install, use a 7/16″ brad-point drill bit to drill several holes for the spring bolts as needed. Generally the bolts are set to secure the lower sash in the closed/locked position and one or two other “open positions.”

Pro-tip: we like to set the bolts so that the open positions are:

1. shut

2. lower sash open 2 – 3 inches for a bit of ventilation while preventing children or pets from falling out of the window.

3. a height where muntins align.

Sockets are a friction fit and are tapped into place with a small hammer.

The sockets are available in  Unlacquered Brass and Oil Rubbed Bronze.

Additional information

Weight N/A
Dimensions N/A
Package Includes

10 pieces, 100 pieces


Unlacquered Brass, Oil Rubbed Bronze


Solid Brass


SRS Hardware


There are no reviews yet.

Be the first to review “Jamb Sockets”

Your email address will not be published. Required fields are marked *

Presentation Sheet

Download the Presentation Sheet

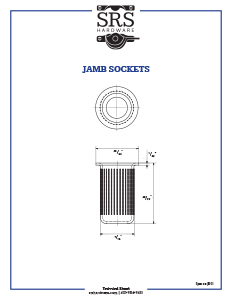

Technical Drawing
